Z Purlin Roll Forming Machine CZ Steel Machine

  • Z Purlin Roll Forming Machine CZ Steel Machine
  • Z Purlin Roll Forming Machine CZ Steel Machine
  • Z Purlin Roll Forming Machine CZ Steel Machine
  • Z Purlin Roll Forming Machine CZ Steel Machine

Z Purlin Roll Forming Machine CZ Steel Machine

    Unit Price: USD 11500.00 - 26000.00 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: nude packing
    Productivity: 5-12m/min
    Brand: zhongtuo
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 30 sets per month
    Certificate: CE ISO9001

Basic Info

Model No.: ZT-005-119

Product Description

Z Purlin Roll Forming Machine CZ Steel Machine

Z Purlin Roll Forming Machine CZ Steel Machine Process Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Suitable Material Type:GI/PPGI/AL

Thickness:2.0-3.0mm

Length Tolerance:±2mm/6m

Working Speed:25 m/min Standard machine

Total Power:6KW

Total Weight: About 6.2T Up to final design

Deatiled information of Z Steel Forming Machine

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

decoiler

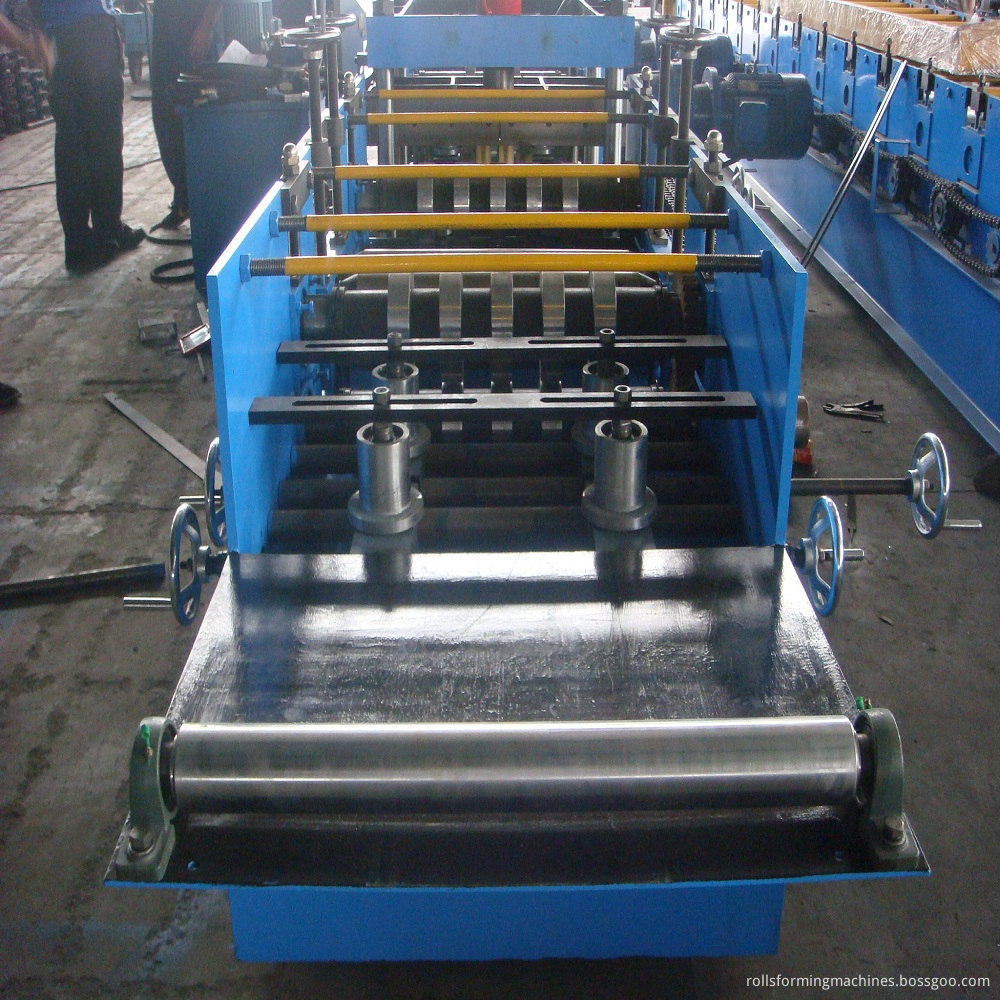

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

DSC04844

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

Length of the main part:6800*800*1200mm

Weight of main part:About 6.2 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Guide column

Frame: Middle plate welded Memorial arch frame type

Frame thickness:25mm

Drive mode:Gear or chain

Material of rollers:45# steel with tempering

Material of shafts:45# steel with tempering

Diameter of shafts:φ80mm

Number of rollers:12rollers

Main power:11kw (Cycloidal planetary gear speed reducer)

Z Steel Forming Machine

Cutting device

Advanced hydraulic drive flying saw cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor. Flying saw punching Z steel equipment is a kind of Z steel machine cut, it adapt after cut. This cut off the way do not need to change model,You can added the punch in the flying saw device at the same time to achieve the effect of flying saw punching if you need.

cutting


Punching device

Features: punching is a part of the the flying saw cutting, is controlled by hydraulic station, mainly punches holes at Z steel , Whether puching is according to customer's need, easy to control use conveniently and long life.

Controlling device

plc control system

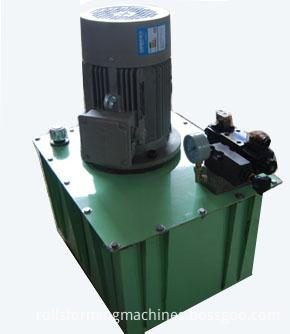

Hydraulic

hydralic station


Spare Parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs


Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling
